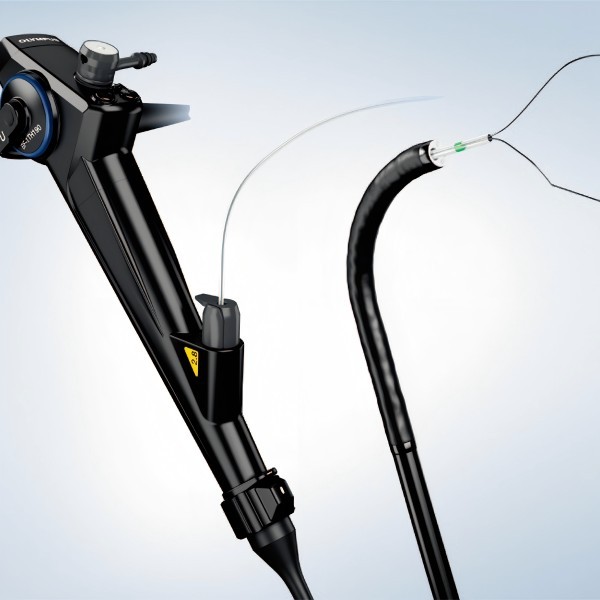

Olympus BF-1TH190 Therapeutic Video Bronchoscope

Overview

EVIS EXERA III BF-1TH190 Therapeutic Video Bronchoscope

Therapeutic bronchoscope with superb HDTV image quality and a 2.8 mm instrument channel.

Main features
HDTV
Superb HDTV images enable more detailed observation of bronchial surfaces.

HDTV

NBI (Narrow Band Imaging)
NBI is an optical image enhancement technology that improves the visualisation of vessels on the mucosal surface. NBI is now 50% brighter compared to previous models.

Electronic magnifi cation
Electronic magnification of 1.2× and 1.5× is now possible, allowing closer observation.

Insertion tube rotation function
The insertion tube can be rotated left or right up to 120 degrees by simply turning a ring on the control section of the scope. This supports easier operation and smoother insertion with less operator fatigue.

Waterproof One-touch Connector
A new connector design minimises the effort required for set-up prior to and in between cases. In addition, it is fully submersible without a water-resistant cap and eliminates the associated risk of an expensive repair due to accidental immersion.

Ergonomic scope cable direction
The angle of direction of the universal cord has been improved so that the scope cable does not hang limp,even if the video system is located behind the bronchoscopist.
