Overeview

ENDOCAM Flex HD 5521101
Camera controller

•Small design – low space requirement
•Attractive price-performance ratio
•For universal use in urology and pneumology with the new, flexible sensor endoscopes
•Optional camera head when using rigid endoscopes
•Adaptation of various C-Mount lenses
•Integrated VESA 100 interface for mounting to the wall or on the side of a device cart
•Optional: Bracket for adaptation to a monitor
Please note the ordering details of the recommended mounting accessories
•Documentation on PC / laptop possible via ENDOCAM Flex documentation software

ENDOCAM Flex HD camera controller
complete ........................................................................................... 55211011
Comprising:
1x ENDOCAM Flex HD camera controller .............................. 5521101
1x HDMI/DVI-D cable, lockable, 3 m ....................................... 103843
1x power cable ................................................................................. 2440.03

Overview

ENDOCAM logic 4K
Camera controller

•4K resolution with either
3840 x 2160 pixels or 4096 x 2160 pixels
•Continuous processing of captured 4K imaging data with
4K resolution
•Optimally matched system consisting of telescopes, lenses, camera head, camera controller, light source, light cables and monitors
•All available light sources and applied parts of the ENDOCAM Logic HD are compatible with the ENDOCAM Logic 4K Controller and can continue to be used
•USB port on camera controller for directly saving HD images and HD videos to USB storage media
•Including "Special Imaging Modes" (SIM) for enhanced tissue differentiation
•Extremely easy to use thanks to pre-programming of clinically-devised presets for various disciplines, effortless saving of personal settings
•Patient data can be entered via a USB keyboard
•Direct printing possible
•Future-proof investment, updates can be imported at any time via the USB port
•Central component of the core nova OP Integration
•Dialog function:
1.Control of connected, dialog-capable ENDOLIGHT light source for optimum illumination with maximum protection for the endoscope
2.Monitor display of major parameters for further

ENDOCAM Logic 4K camera controller
complete ............................................................................................. 55253011
Comprising:
1x ENDOCAM Logic 4K camera controller ............................. 5525301
1x hand-held remote control ...................................................... 5525401
1x USB flash memory 32GB ......................................................... 72321829
1x HDMI/HDMI cable, lockable, 3.0 m .................................... 103847
1x power cable ................................................................................ 2440.03

Overeview

ENDOCAM logic HD lite 5525201
Camera controller

•Maximum quality at a minimum price
•Basic functions
•User-friendly

ENDOCAM Logic HD Lite camera controller
complete .............................................................................................. 55252011
Comprising:
1x ENDOCAM Logic HD Lite camera controller ..................... 5525201
1x hand-held remote control USB .............................................. 5525401
1x USB flash memory 8GB ............................................................. 56540028
1x HDMI / DVI-D cable, lockable 3.0 m .................................... 103843
1x power cable ................................................................................... 2440.03
1x 5525 DVD license open-source software ............................ 64360816

Overeview

ENDOCAM logic HD 552510x
Camera controller

•Various equipment variants. The variants exclusively refer to the configuration of output and input signals
•Digital signal processing
•Outstandingly wide range of application due to integration of various applied parts and diagnostic methods
•updates can be applied at any time via USB port
•Storage of high-resolution images and HD videos on USB storage media
•Integration of further image signals via picture-in-picture port(3G-SDI)
•Specialized for use in integrated operating rooms as a central core nova module
•User-friendly. Clinically-devised presets are pre-programmed for various disciplines. This includes applications using standard
•and fiber endoscopes as well as sensor endoscopes with chip-on-the-tip technology. Personal settings can easily be saved as well
•Maximum flexibility: The resolution of all signal outputs can be adapted individually to the connected system
•Patient data can be entered using the connected USB keyboard
•Direct printing possible
•Modern, clearly arranged on-screen menu
•Dialog function:
1. Control of connected ENDOLIGHT light source for optimum illumination with maximum protection for the endoscope
2. Monitor display of major device parameters for further devices (pressure indication, set flow, residual gas display, etc.)

Overview

Fiber Ureterorenoscope by Bichler with oblique eyepiece
•Stone therapy with laser, ultrasound, electrohydraulic or ballistic lithotripsy
•Rigid accessory instruments can be used through the straight instrument channel
•Use of flexible accessory instruments or two different instruments such as laser fiber or electrohydraulic probe and stone baskets to stabilise and retrieve the concrement

Overview

Fiber Ureterorenoscope by Bichler with oblique eyepiece
•Stone therapy with laser fiber Ø 272 μm, lithoclast probe Ø 0.8 mm and electrohydraulic lithotripsy 2.4 Fr.
•Also possible for paediatric urology
•Particularly suitable for primary URS without prior placement of a double J catheter
•Rigid lithoclast probe Ø 0.8 mm can be used through the straight instrument channel
•Excellent view thanks to the latest image guide technology and optimum irrigation flow

Overview

Slim, compact design in 5.0 mm and 3.8 mm diameters

The slim, all-in-one design of our compact hysteroscopes from Richard Wolf does not only offer aesthetic appeal, but also practical benefits.
Good handling, optimized reprocessing and a long usage life meet internal qualities such as a brilliant image, true continuous flow and a large, straight working channel.
Challenges are easily overcome with two sizes of compact hysteroscopes:
All-in-one comes in pairs

Well-protected
The durable, compact construction protects surely and steadily the premium-quality PANOVIEW PLUS optics. This increases the lifespan greatly compared to dismantling instruments and ensures a sustained,optimal image quality.

Lots of room with minimal impact
Even with a relatively thin outer diameter,both models are equipped with a large 5 Fr. working channel,which allows the passage of various instrumentation.


A standard measurement becomes a standard
With its greatly reduced outer diameter, the 3.8 mm compact hystoroscope is the optimal choice for the highly atraumatic treatment of fertility and sterility patients.

True continuous flow
Two separate in and outflow channels ensure a constantly clear sight of the operating field - also when instruments are passed through the working channel

Simply straight on
The straight 5 Fr. working channel ensures hand instruments remain protected from bending during operation.
The attachable ergonomic handle allows comfortable and easy handling of the endoscope.

Overeview

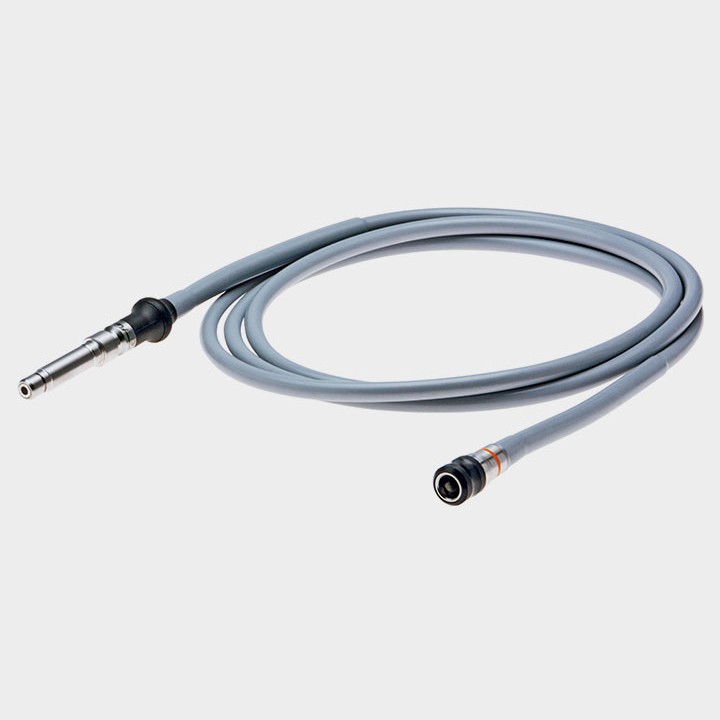

Fiber light cable
•High-performance fiber optic material "made in Germany"
•Fast "snap-on" precision connection between endoscope and light cable
•Anti-kink protection made of steel allows for a particularly high number of usage cycles
•Suitable for low-temperature procedure
•Steam-sterilizable
•Standardized color coding of light cables and endoscopes based on their diameters
•Adapters for compatibility with light sources and endoscopes from different manufacturers

Overeview

Fiber light cable

•Improved light transmission thanks to a special design
•High-performance fiber optic material "made in Germany"
•Fast "snap-on" precision connection between endoscope and light cable
•Anti-kink protection made of steel allows for a particularly high number of usage cycles
•Suitable for low-temperature procedure
•Steam-sterilizable
•Adapters for compatibility with light sources and endoscopes from different manufacturers
•Standardized color coding of light cables and endoscopes based on their diameters
