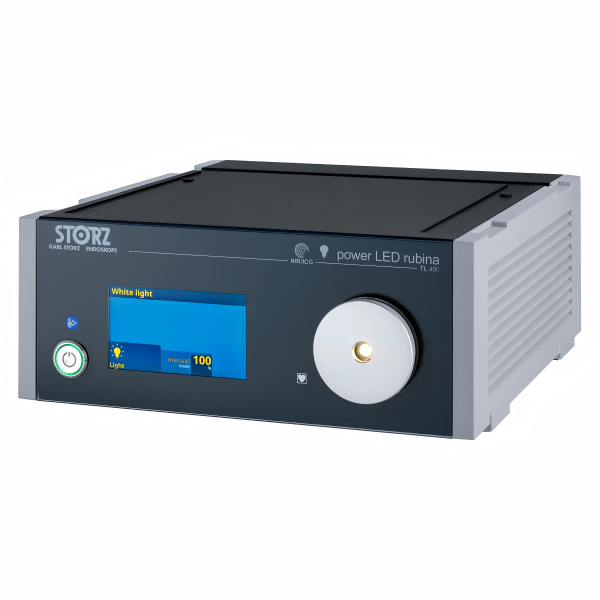

Karl Storz TL400 Power LED RUBINA NIR_ICG Light Source
- Karl Storz
- Bundesrepublik Deutschland
Karl Storz TL400 Power LED RUBINA, OPAL1 NIR/ICG
Overview
Karl Storz TL400 Power LED RUBINA, OPAL1 NIR/ICG
POWER LED RUBINA® – The New LED Light Source for White Light and NIR/ICG Applications
Power, efficiency, durability and flexibility are the hallmarks of the POWER LED RUBINA® cold light source based on LED technology. The light source can be used for white light as well as fluorescence applications for displaying NIR/ICG or autofluorescence in the near infrared range.
· Laser-free LED light source for white light and NIR/ICG excitation
· OPAL1® NIR/ICG technology with new functionalities
· Min. 30,000 hours of lamp service life
· Straightforward user interface thanks to intuitive touch screen
· Constant light intensity throughout the entire service life
· Very low volume
Specifications
Fluorescence imaging (NIR/ICG) | Yes |
Fluorescence imaging (Blue Light Imaging BLI) | no |
Control via touch screen | yes |
Illumination technology | LED |
Average lamp service life | 30000 h |
Integrated pump for air insufflation | no |
Color temperature approx. | 5700 K |
Unit communication KS HIVE | yes |
Unit communication SCB | no |
Light intensity adjustment | Automatic via HIVE and manual |
Weight | 7.4 kg |
Width | 305 mm |
Height | 120 mm |
Depth | 370 mm |
Power supply | 100 - 125 / 220 - 240 VAC |
IP protection class | IPX0 |
Electrical protection class | protection class 1 |
KARL STORZ light outlet | yes |
Power consumption | 220 VA |
Line frequency | 50/60 Hz |
Degree of safety | CF |
Degree of safety with KARL STORZ light cables | CF-Defib |
Wipe disinfection | yes |
