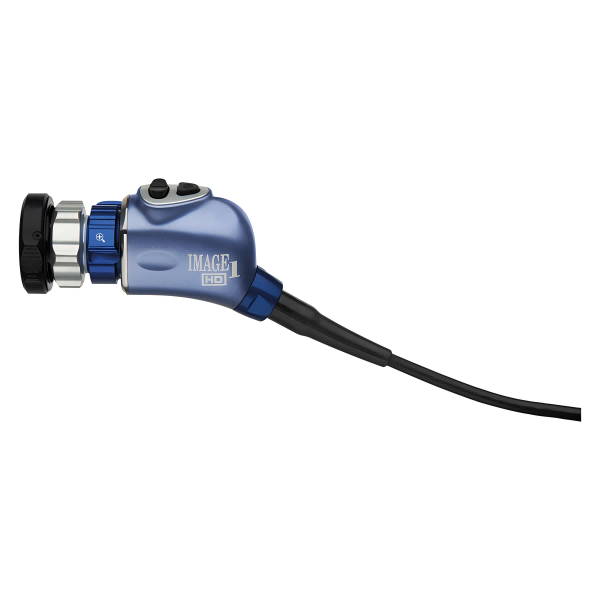

Karl Storz TH102 IMAGE1 S H3-Z FI Camera Head
- Karl Storz
- Bundesrepublik Deutschland
IMAGE1 S H3-Z FI TH102 NIR/ICG Camera head
· Camera head for white light and OPAL1® NIR/ICG imaging
· S-Technologies available
· Compatible with IMAGE1 S™ H3-LINK
Overview
IMAGE1 S H3-Z FI TH102 NIR/ICG Camera head
· Camera head for white light and OPAL1® NIR/ICG imaging
· S-Technologies available
· Compatible with IMAGE1 S™ H3-LINK
Specifications
Image sensor resolution | FULL HD |
Connection | H3-Line |
Fluorescence imaging (NIR/ICG) | yes; in conjunction with Power LED RUBINA |
Fluorescence imaging (Blue Light Imaging BLI) | no |
S-Technologies | CLARA; CHROMA; SPECTRA A + B |
Frame rate | 50/60 Hz |
Image sensor type | CCD |
Number of image sensors | 3 |
Lens | parfocal zoom lens |
Optical zoom | yes; optical |
Focal length | 15 – 31 mm |
Width | 39 mm |
Height | 49 mm |
Length | 114 mm |
Weight | 246 g |
Cable length | 300 cm |
Cable, detachable | no |
Cable routing | angled |
Camera head buttons | 3 buttons; 2 freely programmable |
Grip mechanism | standard eyepiece adaptor |
Soakable | yes |
Autoclavable | no |
EO sterilization | yes |
H2O2 (hydrogen peroxide) | yes |
Wipe disinfection | yes |
Sterile concept | single-use covers |
Scanning method | progressive scan |
