endocam logic 4k

Overview ENDOCAM logic 4K Camera controller •4K resolution with either 3840 x 2160 pixels or 4096 x 2160 pixels •Continuous processing of captured 4K imaging data with 4K resolution •Optimally matched system consisting of telescopes, lenses, camera head, camera controller, light source, light cables and monitors •All available light sources and applied parts of the ENDOCAM Logic HD are compatible with the ENDOCAM Logic 4K Controller and can continue to be used •USB port on camera controller for directly saving HD images and HD videos to USB storage media •Including "Special Imaging Modes" (SIM) for enhanced tissue differentiation •Extremely easy to use thanks to pre-programming of clinically-devised presets for various disciplines, effortless saving of personal settings •Patient data can be entered via a USB keyboard •Direct printing possible •Future-proof investment, updates can be imported at any time via the USB port •Central component of the core nova OP Integration •Dialog function: 1.Control of connected, dialog-capable ENDOLIGHT light source for optimum illumination with maximum protection for the endoscope 2.Monitor display of major parameters for further ENDOCAM Logic 4K camera controller complete ............................................................................................. 55253011 Comprising: 1x ENDOCAM Logic 4K camera controller ............................. 5525301 1x hand-held remote control ...................................................... 5525401 1x USB flash memory 32GB ......................................................... 72321829 1x HDMI/HDMI cable, lockable, 3.0 m .................................... 103847 1x power cable ................................................................................ 2440.03

Overeview ENDOCAM logic 4K 85525942 3-chip camera head •Digital image processing and digital signal transmission •2 programmable camera head buttons with 4 available functions •Ergonomic handling due to smaller, weight-saving design compared to previous HD camera heads •Production using 3D printer •Improved heat dissipation makes the device more pleasant to handle •Universal C-Mount lens connection •Service-friendly design: camera cable can be replaced on site by technician •Steam-sterilizable •Can be reprocessed by machine •Suitable for low-temperature procedure ENDOCAM Logic 4K camera head ...................... 85525942 3-chip type, cable length 3 m

Overview Flexible Sensor Cystoscope for ENDOCAM Logic 4K Controller •210° deflection upward/downward for precise control and navigation •7.5 Fr. large working channel for optimal irrigation •Atraumatic, 11.5 Fr. beveled distal tip for easy insertion and patient comfort •16.2 Fr. sheath Ø •Dual LED distally for superior illumination •Two programmable camera buttons capable of controlling up to four functions •Special Imaging Mode (SIM) compatible •Ergonomic handle •Axial cable

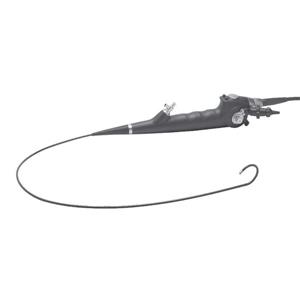

Overview Flexible 2-channel Sensor Ureterorenoscopes for ENDOCAM Logic 4K Controller •The only flexible dual channel Sensor URS available in the marketplace •Laser and irrigation channel 2.4 Fr. •Laser channel for fibers up to 365 μm •Large 3.6 Fr. working and irrigation channel for high irrigation •LED technology for homogeneous illumination •No separate light source and light cable necessary •Laser shifter controls movement of the laser fiber •Optimized channel position for precise positioning of the laser fiber and simple collection of stone concretions: laser channel at 9 o‘clock, working channel at 6 o‘cloc
